Maximize Solar Investment with Growatt Battery Installation
Powering Perth Homes with Smart Energy Storage.
Growatt: Pioneering Sustainable Energy Solutions
Advanced Energy Storage for Perth Homes
Founded in 2011 by visionary leader David Ding and a team of renewable energy pioneers, Growatt emerged with a clear mission: to create a greener, more sustainable future through innovative solar technology. Growatt unwavering commitment to making clean energy accessible to everyone drives their dedicated team to continuously deliver exceptional products and services to customers worldwide.
In just over a decade, Growatt has established itself as a global leader in distributed energy solutions. Today, the company proudly holds the position as the world number one residential inverter supplier and ranks among the top four global providers of photovoltaic inverters and energy storage systems.
Growatt remarkable growth reflects their dedication to innovation, quality, and customer satisfaction. From their headquarters to their global network of partners, Growatt remains united by a shared vision of transforming how the world generates, stores, and utilizes energy.
Why Choose Growatt Battery Solutions
Local Expertise Meets World Class Technology
Perth homeowners are increasingly turning to Growatt battery systems for their energy storage needs, and for good reason. As Western Australia leads the nation in solar adoption, choosing the right battery partner becomes crucial for maximizing your solar investment and achieving true energy independence.
Proven Performance in Perth Climate: Growatt batteries are specifically engineered to excel in Perth unique climate conditions. With extreme summer temperatures and varying seasonal patterns, these robust systems maintain optimal performance year round, ensuring reliable energy storage when you need it most.
Outstanding Value for Perth Families: With Perth high electricity costs and excellent solar conditions, Growatt battery systems deliver exceptional return on investment. Homeowners typically see significant reductions in their energy bills while gaining backup power security during outages, a valuable benefit during Perth occasional severe weather events.
Get Started with Professional Growatt Battery Installation Today!
Ready to transform your Perth home with reliable, efficient energy storage? Getting started with professional Growatt battery installation is easier than you think. Our certified installers are standing by to help you take the next step toward energy independence and significant savings on your electricity bills.
Fusion Sun Solar experienced technicians visit your property to evaluate your current solar system, energy usage patterns, and electrical infrastructure. We will discuss your specific needs and recommend the ideal Growatt battery solution for your home.
To get started, simply fill out this form. Our team will be in touch to guide you through the complete Growatt Battery installation process.

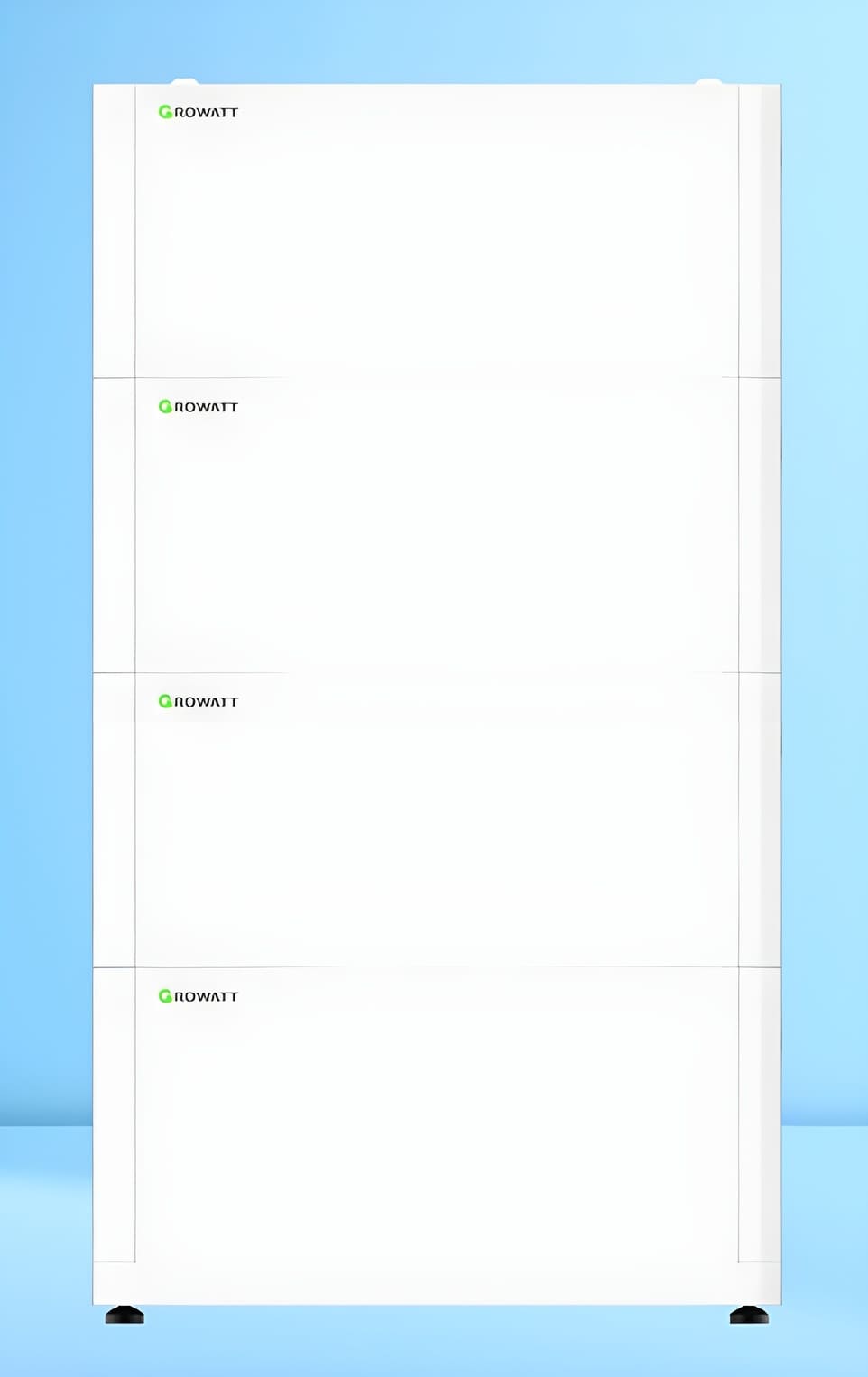

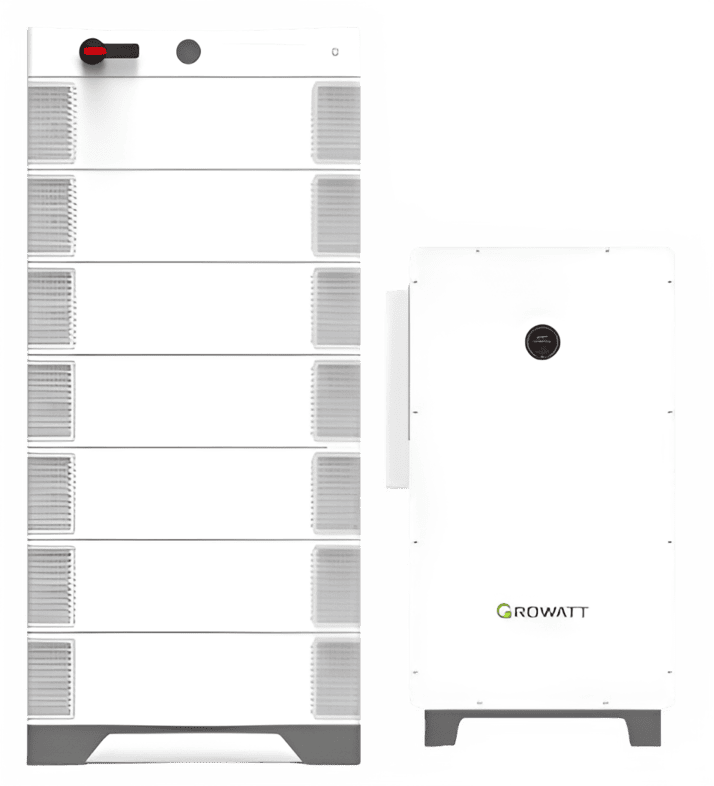

Growatt APX HV Battery
Superior Performance and Reliability You Can Trust
Environmental Resilience
Operates reliably from -10°C to 50°C
Weather resistant IP66 rating
Advanced Safety Features
Eco friendly cobalt free LiFePO4 technology
Integrated modular energy optimization
Multi layer protection with fuse and aerosol systems
Surge resistant soft start Battery technology
Scalable System Design
Seamless parallel battery connections
Compatible with existing battery packs
Mix different capacities as needed
Multi brand system compatibility
Growatt APX HV S2 Battery Specs
- Battery Module Energy (5 kWh each)
- Number of battery modules: 1 | 2 | 3 | 4 | 5 | 6
- Energy Capacity: 5 kWh | 10 kWh | 15 kWh | 20 kWh | 25 kWh | 30 kWh
- Usable Capacity: 4.5 kWh | 9 kWh | 13.5 kWh | 18 kWh | 22.5 kWh | 27 kWh
- Max. output power: 2.5 kW | 5 kW | 7.5 kW | 10 kW | 12.5 kW | 15 kW
- Peak output power: 4 kW/60s | 8 kW/60s | 12 kW/60s | 16 kW/60s | 20 kW/60s | 20 kW/60s
- 1 module Dimension: 690/185/660 mm
- 2 modules Dimension: 690/185/955 mm
- 3 modules Dimension: 690/185/1250 mm
- 4 modules Dimension: 690/185/1545 mm
- 5 modules Dimension: 690×2/185/1250 mm
- 6 modules Dimension: 690×2/185/1250 mm
- Weight: 68 kg | 118 kg | 168 kg | 218 kg | 271 kg | 321 kg
- Nominal voltage (three phase system): 650 V
- Operating voltage range (three phase system): 600 V to 980 V
- Battery type: Cobalt Free Lithium Iron Phosphate (LFP)
- Ingress Protection: IP66
- Installation: Wall mounted or Floor installation
- Operating ambient temperature: -10°C to +50°C
- Relative humidity: 5% to 95%
- Cooling: Natural
- Altitude: ≤ 4000 m
- Warranty: 10 years
Power Module - APX 98034-P2
- Dimension (W/D/H): 690/185/295 mm
- Weight: 16 kg
- Communication port: CAN/RS485
- Module voltage range: 330 V to 450 V
- BAT+/- voltage range: 600 V to 980 V
- Maximum current: 26 A
- Peak current: 34 A, 60 s
- Monitoring parameters: SOC, System voltage, current, cell voltage, cell temperature, PCBA temperature
Battery Module - APX 5.0P-B1
- Nominal energy: 5 kWh
- Nominal voltage: 385 V
- Operating voltage range: 330 to 450 V
- Dimensions (W/D/H): 690/185/295 mm
- Weight: 50 kg

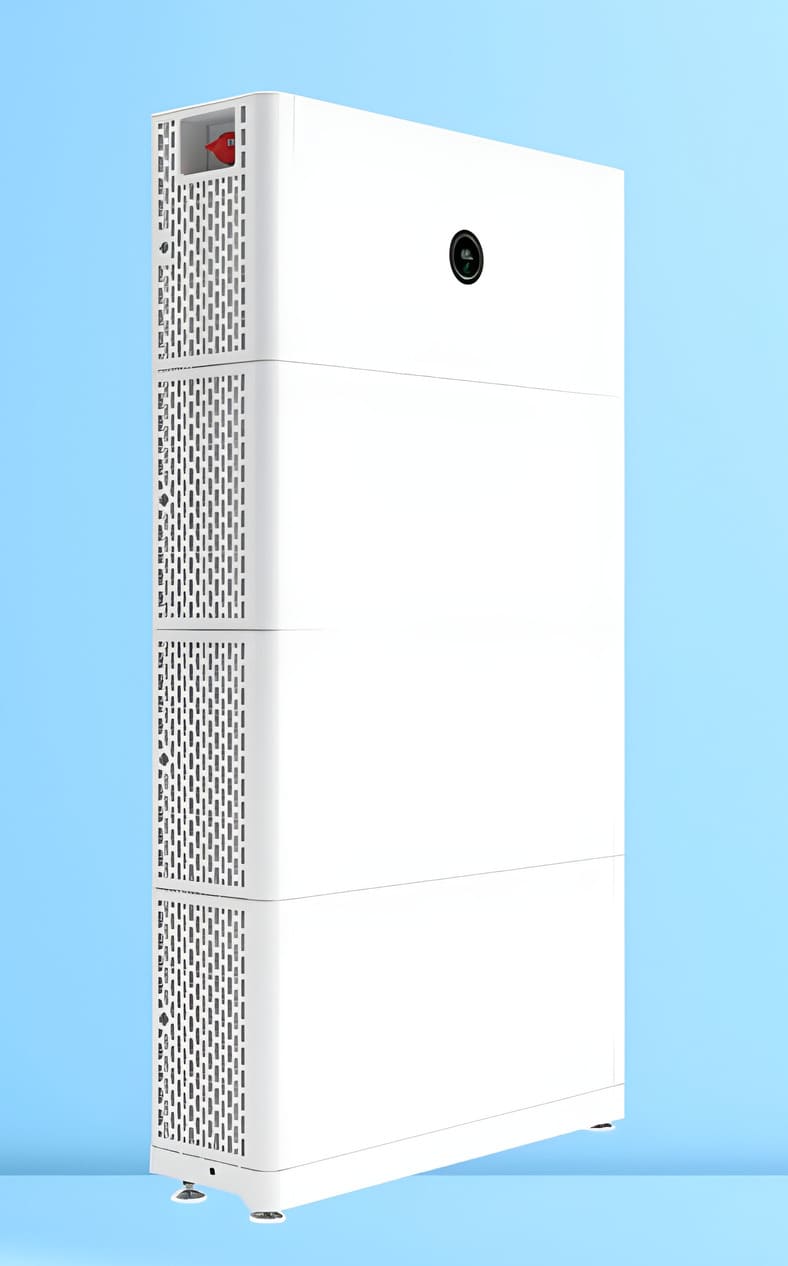

Growatt ALP LV Battery
Performance data and system details
Rapid 30 minute installation time
Cable free stacking battery design
Plug and play module detection
Dependable Performance
Safe cobalt free lithium technology
Extended cycle life and durability
Intelligent surge protection startup
Complete system coverage guarantee
Intelligent Management
Automatic low voltage recovery
Remote troubleshooting and updates
Growatt ALP LV Battery
- Model: ALP5.0L-E1 | ALP10.0L-E1 | ALP15.0L-E1 | ALP20.0L-E1 | ALP25.0L-E1 | ALP30.0L-E1 | ALP35.0L-E1 | ALP40.0L-E1
- Nominal energy: 5 kWh | 10 kWh | 15 kWh | 20 kWh | 25 kWh | 30 kWh | 35 kWh | 40 kWh
- Rated energy: 4.6 kWh | 9.2 kWh | 13.8 kWh | 18.4 kWh | 23 kWh | 27.6 kWh | 32.2 kWh | 36.8 kWh
- Nominal capacity: 100 Ah | 200 Ah | 300 Ah | 400 Ah | 500 Ah | 600 Ah | 700 Ah | 800 Ah
- Rated capacity: 90 Ah | 180 Ah | 270 Ah | 360 Ah | 450 Ah | 540 Ah | 630 Ah | 720 Ah
- Rated current: 75 A | 100 A | 100 A | 100 A | 100 A | 100 A | 100 A | 100 A
- Max current: 90 A | 125 A | 125 A | 125 A | 125 A | 125 A | 125 A | 125 A
- Rated power: 3.7 kW | 5 kW | 5 kW | 5 kW | 5 kW | 5 kW | 5 kW | 5 kW
- Max power: 4.5 kW | 6.2 kW | 6.2 kW | 6.2 kW | 6.2 kW | 6.2 kW | 6.2 kW | 6.2 kW
- Weight: 44 kg | 88 kg | 132 kg | 176 kg | 220 kg | 264 kg | 308 kg | 352 kg
- Dimensions (W/D/H): 690/185/295 mm | 690/185/590 mm | 690/185/885 mm | 690/185/1180 mm | 690/185/1475 mm | 690/185/1770 mm | 690/185/2065 mm | 690/185/2360 mm
- Nominal voltage: 51.2 V
- Voltage range: 46.4 to 57.6 V
- IP rating: IP66
- Storage temperature: -20°C to +50°C (7 days); -20°C to 40°C (6 months; 95% RH)
- Cooling method: Natural cooling
- Installation method: Floor/Wall mount (max. two)
- Cell type: LFP (Lithium Iron Phosphate)
- Communication method: CAN
- Scalability: Max. 8 PACKs in parallel

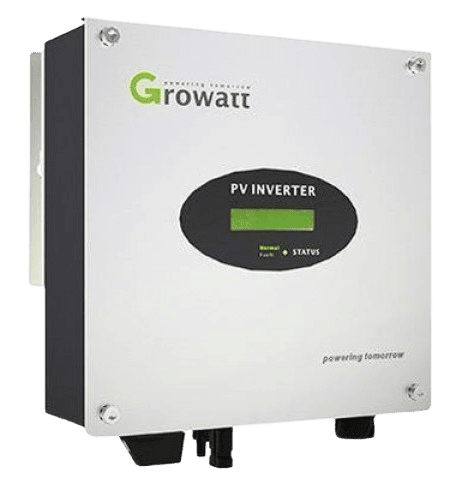

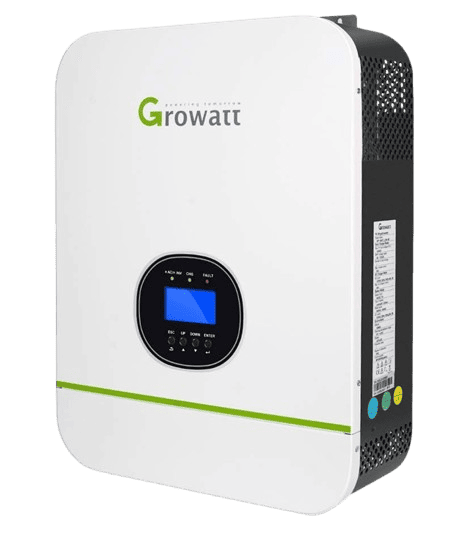

Growatt Battery Compatible Inverter System
Seamless Integration with Leading Solar Inverter Brands
- A compact, user friendly single phase inverter designed for residential rooftop solar systems. Key features include:
- Dual MPP (Maximum Power Point) trackers for improved efficiency and energy capture
- High peak efficiency of around 98.4% for optimal energy conversion
- Touch key control paired with an OLED display for intuitive operation
- "Battery-ready" architecture, allowing future expansion into hybrid/storage systems without needing extra hardware especially in the XH variant
- A more powerful single phase inverter for higher capacity residential installations. Highlights include:
- Support for 2 to 3 MPPTs, increasing flexibility for complex string configurations
- Efficient conversion with a maximum efficiency of about 98.1%
- Easy to use display (touch key + OLED) and compact form factor for single person installation
- Compatible with various communication modules (ShineWiFi-X, Shine4G-X, ShineLan-X, ShineLink-X) and integrated monitoring via Growatt platform
FAQs about Growatt Solar Battery in Perth WA
What battery capacity options are available for Perth installations?
Whats the warranty period for Growatt batteries in Australia?
Growatt provides a 10 year product warranty with 6,000 cycle guarantee at 90% capacity retention under Australian conditions.
Are Growatt batteries compatible with my existing solar inverter?
What is the operating temperature range for Perth climate?
What is the depth of discharge (DoD) specification?
Growatt LiFePO4 batteries offer 95% depth of discharge, maximizing usable capacity compared to traditional lead acid systems.
Can I monitor my battery performance remotely?
